Corrosione della metropolitana di fuoco della caldaia del surriscaldatore del vapore della struttura compatta di ASME anti
Product Details
| Tipo: | Metropolitana di aletta, metropolitana dello scambiatore di calore | Colore: | Su misura |
|---|---|---|---|

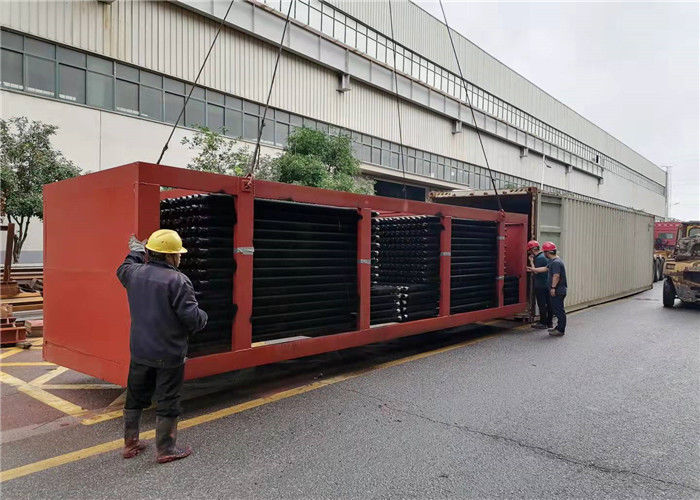

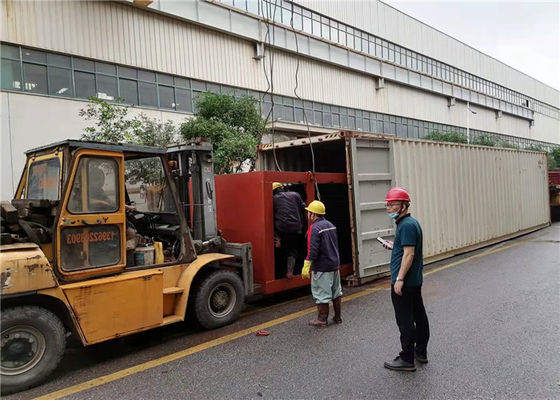

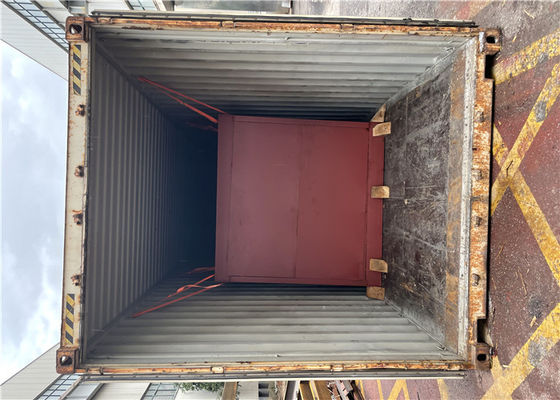

| Pacchetto: | Caso di legno con la struttura d'acciaio, in pacchi, ecc. | Porto: | Shanghai |
| Garanzia: | 1 anno | Efficienza del trasferimento di calore: | Alta efficienza |
| Evidenziare |
Tubo di fuoco della caldaia a vapore di ASME,Tubo di fuoco compatto della caldaia a vapore,Tubi di surriscaldatore della struttura compatta |
||
Product Description
ASME Certification Energy Saving Boiler Fin Tube Compact Structure Anti - Corrosion
Product Introduce
H-fin Tubes have two steel discs,with fluorescent tubes symmetrically welded together to form fins(fins of butterfly piece)creating a shape that looks somewhat like the letter"H",creating an efficient energy saving, extension heating surface.H-fin Tubes also have a high rate of fusion welds and weld tensile strength.H-fin Tube is assembled with the H economizer, which has high efficiency,little resistance,less wear and light weight.
Product Description
1). Add the heat exchange area and reduce the number of tubes, also increase the fume flow section area to reduce the fume speed and abrasion.
2). H type fin tube can be made to double H type fin tube, high rigidness to fit long tube row.
3). H type fin economizer arranged in line to make the space into many small zones, averaged air flow to reduce the abrasion.
4). With straight channel to gain the best ash-blowing effect.
5). The compact structure to reduce the weight and reduce the manufacturing cost.
| Product | H-fin Tube |
| Base Pipe | Welded or Seamless |
| Material | carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys. |
| Application | H economizer,H evaporator,H superheater,H air heater and etc. |
Advantages
1.Anti - corrosion
2.Anti-wear
3.Low contact resistance
4.High Stability
5.Ability to prevent accumulation of dust
Structure
Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.
Parameters
| Item Code | D | D0 | d | δ | h | t | s | s1 | s2 | G | A | Ad | B |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/m | m2/m | m2/kg | / | |
| 1 | 54 | 32 | 26 | 3 | 10 | 6 | 2.4 | 1.5 | 3.3 | 7.505 | 0.6336 | 0.08442 | 6.3 |
| 2 | 54 | 32 | 25 | 3.5 | 10 | 6 | 2.4 | 1.5 | 3.3 | 7.848 | 0.6336 | 0.08073 | 6.3 |
| 3 | 54 | 32 | 24 | 4 | 10 | 6 | 2.4 | 1.5 | 3.3 | 8.158 | 0.6336 | 0.07766 | 6.3 |
| 4 | 56 | 32 | 26 | 3 | 12 | 9 | 2.5 | 1.6 | 3.4 | 6.305 | 0.4989 | 0.07913 | 4.96 |
| 5 | 56 | 32 | 25 | 3.5 | 12 | 9 | 2.5 | 1.6 | 3.4 | 6.635 | 0.4989 | 0.07519 | 4.96 |
| 6 | 56 | 32 | 24 | 4 | 12 | 9 | 2.5 | 1.6 | 3.4 | 6.951 | 0.4989 | 0.07177 | 4.96 |
| 7 | 62 | 38 | 31 | 3.5 | 12 | 9 | 2.7 | 1.8 | 3.6 | 8.102 | 0.5709 | 0.07046 | 4.78 |
| 8 | 62 | 38 | 30 | 4 | 12 | 9 | 2.7 | 1.8 | 3.6 | 8.497 | 0.5709 | 0.06719 | 4.78 |
| 9 | 62 | 38 | 31 | 3.5 | 12 | 11 | 2.7 | 1.8 | 3.6 | 7.173 | 0.4895 | 0.06824 | 4.1 |
| 10 | 62 | 38 | 30 | 4 | 12 | 11 | 2.7 | 1.8 | 3.6 | 7.566 | 0.4895 | 0.0647 | 4.1 |
| 11 | 62 | 38 | 31 | 3.5 | 12 | 13 | 2.7 | 1.8 | 3.6 | 6.548 | 0.4326 | 0.06606 | 3.62 |
| 12 | 62 | 38 | 30 | 4 | 12 | 13 | 2.7 | 1.8 | 3.6 | 6.939 | 0.4326 | 0.06234 | 3.62 |
| 13 | 66 | 42 | 34 | 4 | 12 | 9 | 2.8 | 1.8 | 3.6 | 9.51 | 0.6148 | 0.06466 | 4.66 |
| 14 | 66 | 42 | 33 | 4.5 | 12 | 9 | 2.8 | 1.8 | 3.6 | 9.945 | 0.6148 | 0.06182 | 4.66 |
| 15 | 66 | 42 | 34 | 4 | 12 | 11 | 2.8 | 1.8 | 3.6 | 8.477 | 0.5278 | 0.06226 | 4 |
| 16 | 66 | 42 | 33 | 4.5 | 12 | 11 | 2.8 | 1.8 | 3.6 | 8.908 | 0.5278 | 0.05925 | 4 |
| 17 | 66 | 42 | 34 | 4 | 12 | 13 | 2.8 | 1.8 | 3.6 | 7.761 | 0.4669 | 0.06016 | 3.54 |
| 18 | 66 | 42 | 33 | 4.5 | 12 | 13 | 2.8 | 1.8 | 3.6 | 8.191 | 0.4669 | 0.057 | 3.54 |
