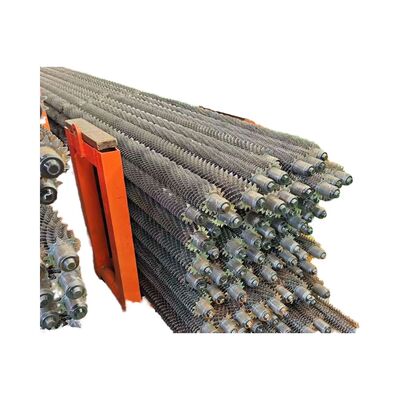

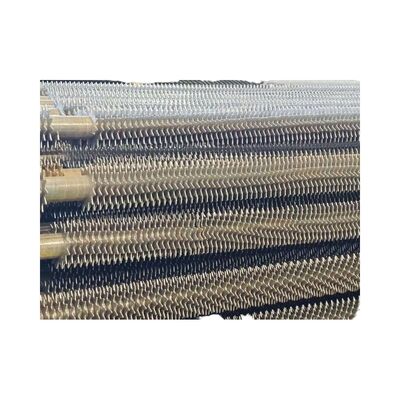

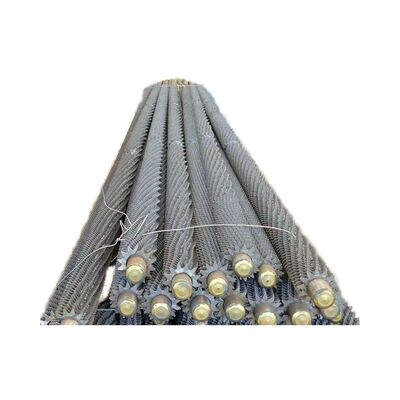

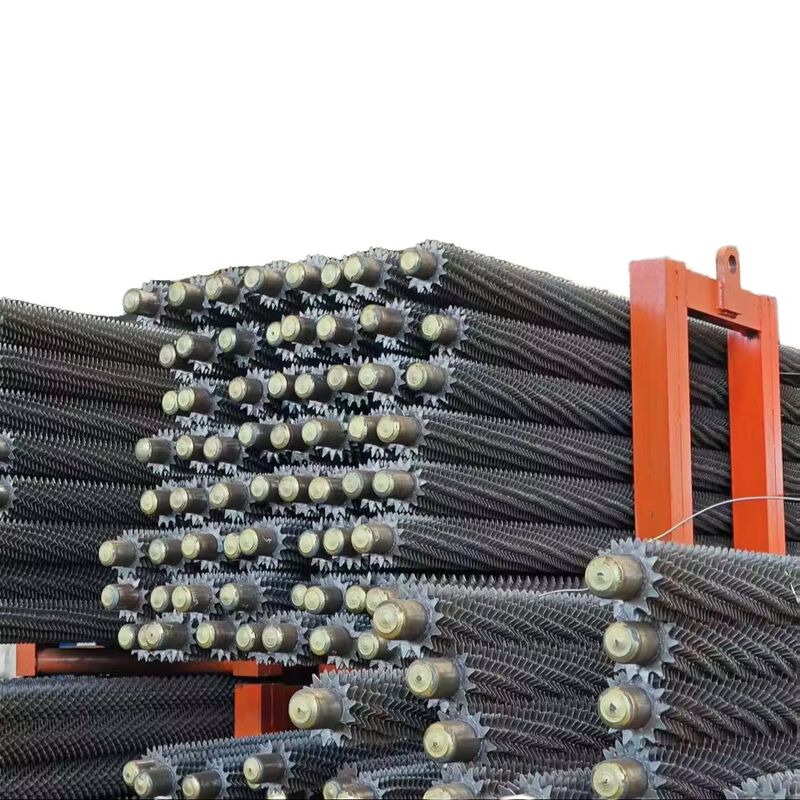

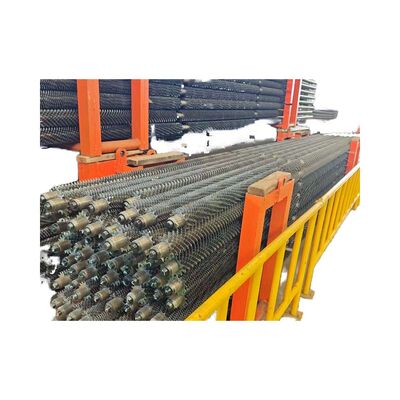

New Efficient Industrial Boiler Fin Tube for Optimal Heat Transfer
Product Parameters
| Item |
Base Tube O.D (mm) |
Base Tube Thickness (mm) |
Fin Height (mm) |
Fin Thickness (mm) |
Fin Pitch (mm) |
| Range |
25.4 ~ 1600mm |
2.5 ~ 40mm |
0.5 ~ 20.0mm |
0.5 ~ 3.0mm |
5 ~ 25.4mm |
| Material |
Carbon Steel, Alloy Steel, Stainless Steel |
| Length |
0 < L < 12000mm |
H-Fin Tube Specifications
| Product |
H-fin Tube |
| Base Pipe |
Welded or Seamless |
| Material |
Carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys |
| Application |
H economizer, H evaporator, H superheater, H air heater and etc. |
Product Introduction
Boiler economizers are heat exchange devices with finned tubes that heat liquids, typically water, up to temperatures below the boiling point. We manufacture three types of boiler economizers: bare tube economizer, H finned tube economizer, and spiral finned tube economizer. The H-finned tube economizer is a highly efficient heat exchanger consisting of H-finned tubes.
Compared with bare tube economizers, H-finned tube economizers significantly enlarge the heat exchange area while reducing the number of tubes required. This design also increases the flue gas flow area, reducing flow speed and minimizing abrasion. H-finned tubes can be manufactured as double H finned tubes with high rigidity, making them suitable for long tube row applications. The spiral finned economizer is a newly designed heat transfer equipment that utilizes spiral fin tubes to overcome serious abrasion issues and extend service life.
Function
The economizer functions to "economize" or save on cooling costs by reducing compressor operation time. When the compressor can be shut down while still providing adequate cooling, significant energy savings can be achieved.
Boiler Economizer Parameters
| Description |
Boiler economizer |
| Material |
Alloy steel, Carbon steel, SA210C, SA213T22, etc. |
| Material Standard |
ASTM, EN or ISO etc. |
| Dimension |
Customization |
| Weight |
Min: 10 ton, Max: 1000 ton |
| Smelting Process |
EF+LF+VD |
| Process |
Material→Ingot→Hot/Cold-Rolling→Heat treatment (Normalizing+tempering)→Inspection→Rough machining→UT→2nd Heat treatment→Finishing machining→Inspection |
| UT Standard |
ASTM A388 or EN10228, etc. |
Company Profile
Zhangjiagang Hua Dong Boiler Co., Ltd., founded in 1985, is an enterprise specializing in manufacturing power station boilers, industrial boilers, HRSGs, waste incineration boilers, biomass boilers and related heating surface components in China. Hua Dong Boiler provides clients with integrated services from design, manufacturing to installation and maintenance.
Our Advantages
38 years experience in industry research, development and manufacturing with sufficient production capacity
Quality Control
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler
- Hydraulic test report: ensure the standard working pressure and safety
Complete quality assurance and control system certified according to International Quality Standards. We establish a quality assurance system in compliance with national regulations, standards and technical requirements. All processes and products are 100% under control, ensuring manufacturing in accordance with contract requirements, national regulations and standards through stringent inspection and testing.
Certifications
Owns verification certificates: ISO 9001: 2015; CE certificate; EN ISO 3834-2; ASME certificate with "S", "U" and "NB" stamps, etc.
Global Sales
Frequently Asked Questions
Q1: How long is the warranty period?
We provide 18 months warranty for all spare parts (excluding fragile parts).
Q2: How can we guarantee quality?
1) All machines are manufactured in strict accordance with ISO quality and CE system requirements.
2) Each procedure is crafted by professional skilled labor, followed by particular QC
3) All information of our products can be checked in efficient management system
Q3: What can you buy from us?
CFB Boiler, HRSG Boiler, Boiler Economizer, Boiler Fin tube, Boiler Air preheater, Boiler superheater, Boiler membrane wall, Boiler manifold headers and other pressure spare parts.
Q4: What kind of service do you provide?
Before sales:
Provide product information, market research forecasting, product customization, product processing, consultation and other services for your convenience.
After sales:
1. Technical training according to customer requirements
2. We promise replacement under warranty
3. We promise to supply maintenance spare parts
4. Regular call back or visit customers
5. On time response to mail and phone calls of your complaints or consultation.
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, L/C, MoneyGram, Western Union, Cash
Language Spoken: English, Chinese
Q5: Are you a factory or trading company, where are you located?
We are a factory located just 130km (2 hours by car) from Shanghai Airport. We offer pickup service at Shanghai for your visit.
